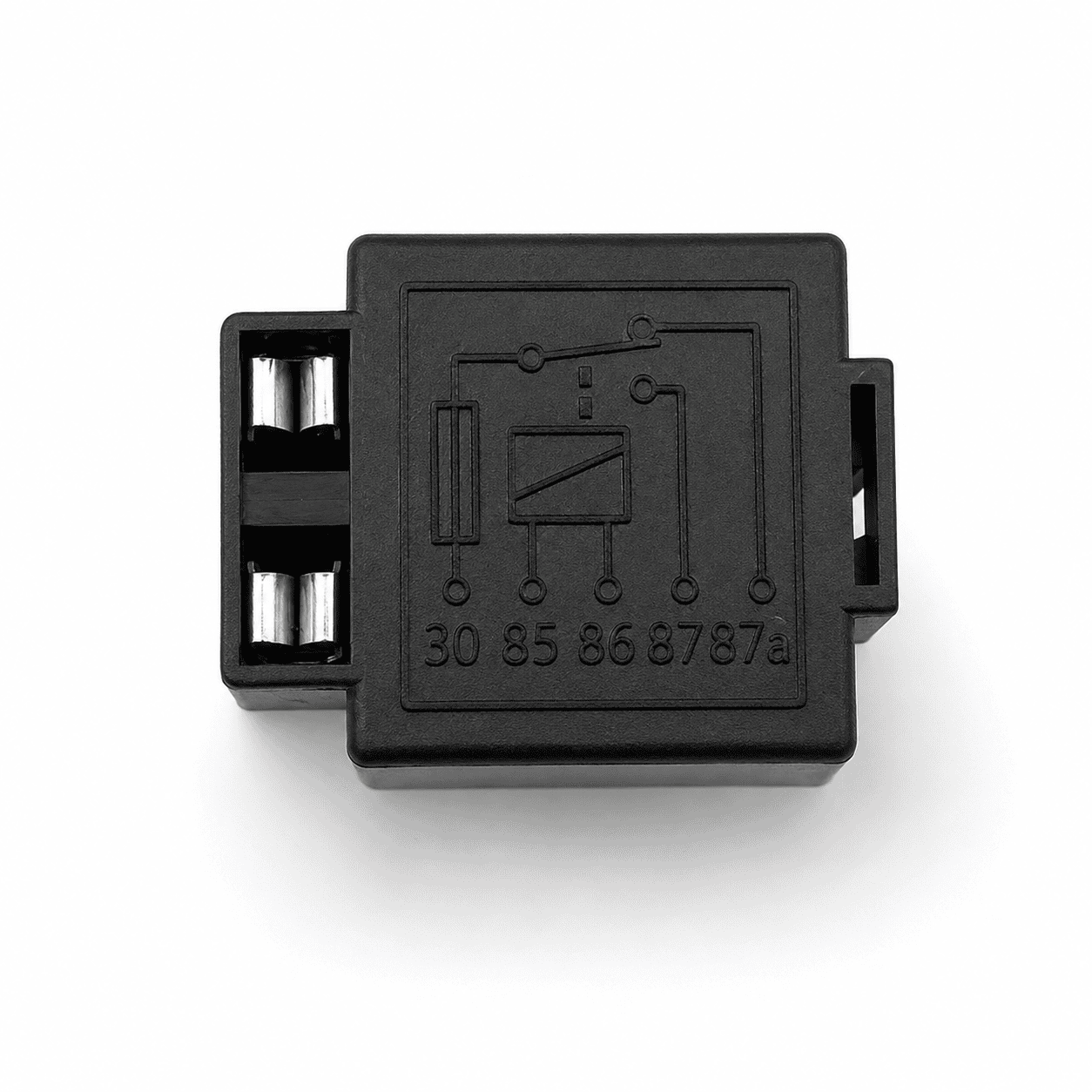

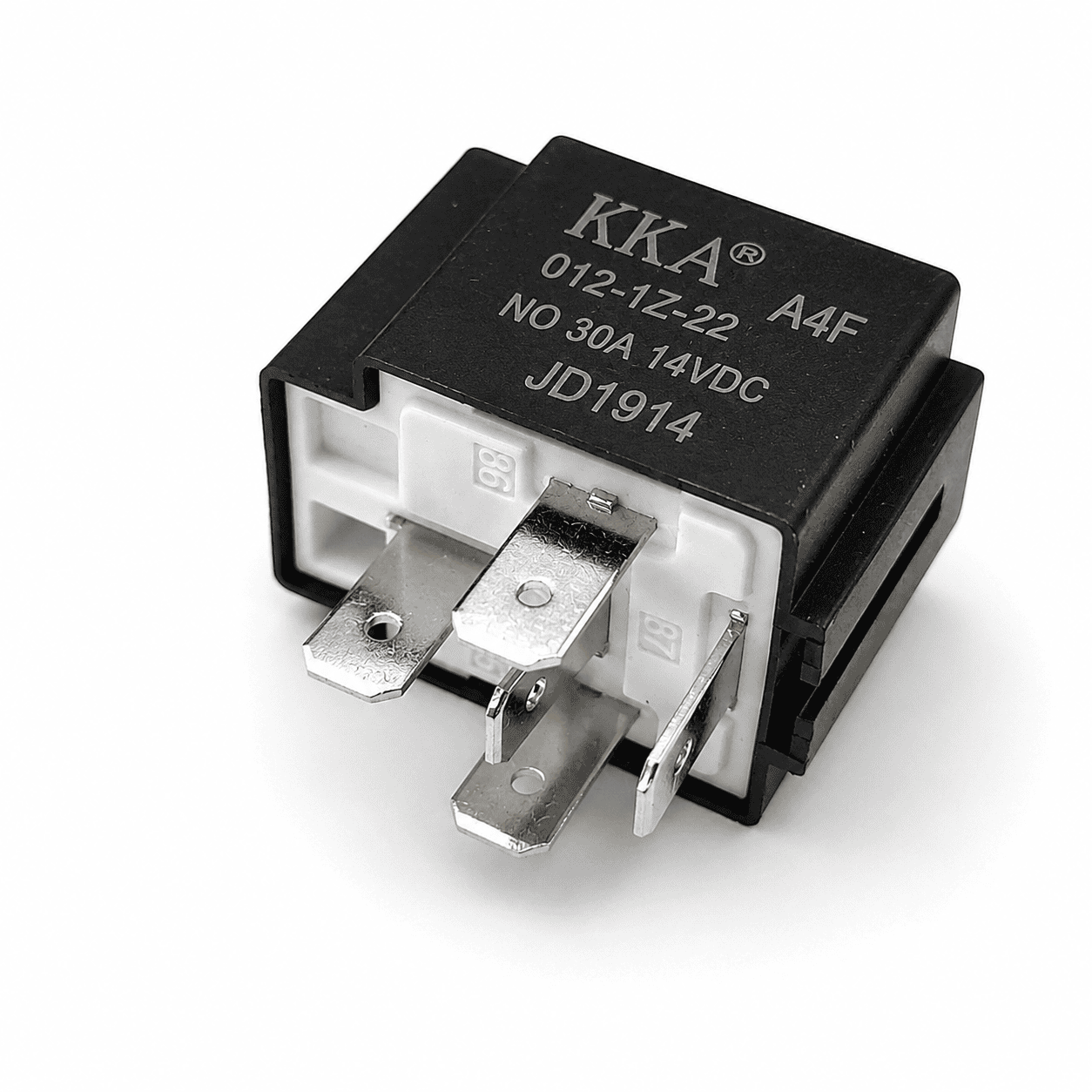

رله خودرویی 30 آمپر 12 ولت 5 پین KKA A4F-0121Z22
امتیاز خریداران
ارسال
ارسال به سراسر ایران
پیگیری سفارش
اطلاعرسانی پیامکی
گارانتی
24 ساعت مهلت تست
خدمات
خدمات پس از فروش
ضمانت اصالت
واردکننده مستقیم
پیشنهادشگفت انگیز
شناسه کالا: 28003
وضعیت:
موجود در انبار
ارسال فوری
قیمت سایت به روز است
ارسال سریع
پست پیشتاز / تیپاکس / باربری
فروش سازمانی
فروش عمده و سازمانی
مشاوره تخصصی
مشاوره فنی و تخصصی
پرداخت ایمن
اینماد و درگاههای معتبر
CHARACTERISTICS
| Item | Specification |
| Contact arrangement | 1A (SPST-NO), 1C (SPDT) |
| Voltage drop | NO: Typ. 20mV, 250mV max. (at 10A) NC: Typ. 30mV, 250mV max. (at 10A) |
| Max. continuous current¹⁾¹⁰⁾ | NO: 60A (at 23°C), 40A (at 85°C), 17A (at 125°C) NC: 45A (at 23°C), 30A (at 85°C), 12A (at 125°C) |
| Max. switching current²⁾ | Make (NO): 150A²⁾ Break (NO): 40A (Resistive, 13.5VDC) |
| Min. contact load | 1A 6VDC |
| Electrical endurance | See “CONTACT DATA” |
| Mechanical endurance | 1×10⁶ OPS (300 OPS/min) |
| Insulation resistance | 100MΩ (at 500VDC) |
| Dielectric strength³⁾ | 500VAC |
| Operate time¹⁰⁾ | Max. 10ms (at nominal vol.) |
| Release time¹⁰⁾ | Max. 10ms⁴⁾ |
| Ambient temperature | -40°C to 125°C |
| Vibration resistance⁵⁾¹⁰⁾ | 5Hz to 22.3Hz 10mm DA 22.3Hz to 500Hz 98m/s² |
| Shock resistance⁵⁾¹⁰⁾ | 294m/s² |
| Flammability⁶⁾ | UL94-HB or better (meets FMVSS 302) |
| Termination | QC¹¹⁾, PCB⁷⁾ |
| Construction | Plastic sealed, Dust protected |
| Unit weight | Approx. 37g |
| Mechanical data⁸⁾ | Housing retention (pull & push): 200N min. Terminal retention (pull & push): 100N min. Terminal resistance to bending (front & side): 10N min.⁹⁾ |
Notes
- For NO contacts, measured when applying 100% rated voltage on coil.
For NC contacts, measured when applying zero voltage on coil. - Inrush peak current under lamp load, at 13.5VDC.
- 1 minute, leakage current less than 1mA.
- The value is measured when voltage drops suddenly from nominal voltage to 0VDC and the coil is not paralleled with a suppression circuit.
- When energized, opening time of NO contacts shall not exceed 1ms. When non-energized, opening time of NC contacts shall not exceed 1ms; meanwhile, NO contacts shall not be closed.
- FMVSS: Federal Motor Vehicle Safety Standard.
- Since it is an environmentally friendly product, please select lead-free solder when welding. The recommended soldering temperature and time is (250±3)°C, (5±0.3)s.
- Only valid for QC version.
- Test point is at 2mm away from terminal end, and after removing testing force, the terminal configuration shall not exceed 0.5mm.
- Only for the 12VDC coil voltage type.
Do NOT knock on relays with hard objects such as rubber rod or rubber hammer during mounting, which might lead to relay damage
