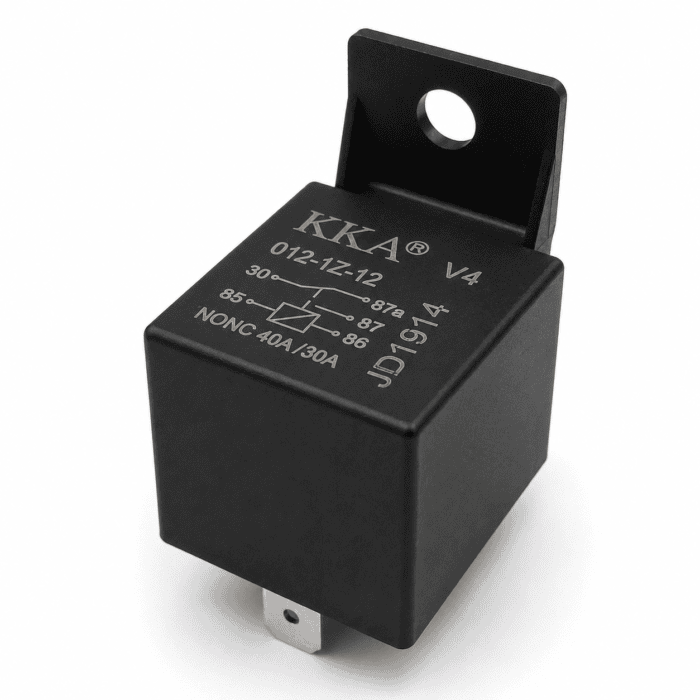

CHARACTERISTICS
| Parameter | Specification |
| Contact arrangement | 1A (SPST-NO), 1C (SPDT) |
| Voltage drop | NO: Typ.20mV, 250mV max. (at 10A) NC: Typ.30mV, 250mV max. (at 10A) |
| Max. continuous current ¹⁾¹⁰⁾ | NO: 60A(at 23°C), 40A(at 85°C), 17A(at 125°C) NC: 45A(at 23°C), 30A(at 85°C), 12A(at 125°C) |
| Max. switching current¹⁰⁾ | Make(NO): 150A²⁾ Break(NO): 40A(Resistive, 13.5VDC) |
| Min. contact load | 1A 6VDC |
| Electrical endurance | See “CONTACT DATA” |
| Mechanical endurance | 1×10⁵OPS (300OPS/min) |
| Insulation resistance | 100MΩ (at 500VDC) |
| Dielectric strength³⁾ | 500VAC |
| Operate time¹⁰⁾ | Max.:10ms (at nomi.vol.) |
| Release time¹⁰⁾ | Max.:10ms⁴⁾ |
| Ambient temperature | -40°C to 125°C |
| Vibration resistance ⁵⁾¹⁰⁾ | 5Hz to 22.3Hz 10mm DA 22.3Hz to 500Hz 98m/s² |
| Shock resistance ⁵⁾¹⁰⁾ | 294m/s² |
| Flammability⁶⁾ | UL94-HB or better(meets FMVSS 302) |
| Termination | QC¹¹⁾, PCB⁷⁾ |
| Construction | Plastic sealed, Dust protected |
| Unit weight | Approx.35g |
| Mechanical data⁸⁾ | housing retention (pull &push):200N min. terminal retention(pull &push):100N min. Terminal resisitance to bending (front &side):10N min⁹⁾ |
Notes:
- For NO contacts, measured when applying 100% rated voltage on coil.
For NC contacts, measured when applying zero voltage on coil. - Inrush peak current under amp load, at 13.5VDC.
- 1min, leakage current less than 1mA.
- The value is measured when voltage drops suddenly from nominal voltage to 0 VDC and coil is not paralleled with suppression circuit.
- When energized, opening time of NO contacts shall not exceed 1ms, when non-energized, opening time of NC contacts shall not exceed 1ms, meantime, NO contacts shall not be closed.
- FMVSS: Federal Motor Vehicle Safety Standard.
- Since it is an environmental friendly product, please select lead-free solder when welding. The recommended soldering temperature and time is (250±3)C, (5±0.3)s.
- Only valid for QC version.
- Test point is at 2mm away from terminal end, and after removing testing force, the terminal transfiguration shall not exceed 0.5mm.
- Only for the 12VDC coil voltage type.
Do NOT knock on relays with hard objects such as rubber rod and rubber hammer during mounting, which might lead to relay damage
