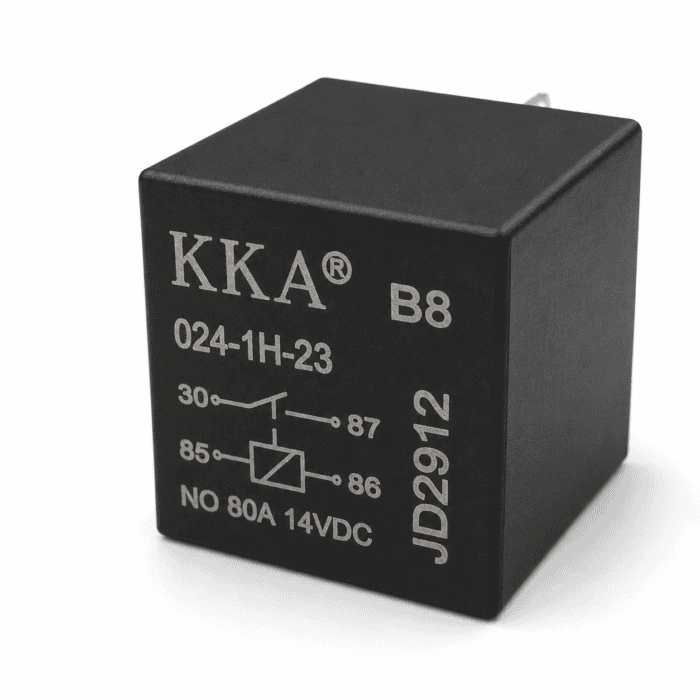

CHARACTERISTICS
| Item | Specification |
| Contact arrangement | SPST-NO (1H), SPDT (1Z) |
| Voltage drop | Typ. 20mV, 250mV max. (at 10A) |
| Max. continuous current¹⁾¹⁰⁾ | 70A (at 23°C), 50A (at 85°C), 30A (at 125°C) |
| Max. switching current¹⁰⁾ | Make (NO): 200A²⁾ Break (NO): 70A (Resistive, 13.5VDC) |
| Min. contact load | 1A, 6VDC |
| Electrical endurance | See “CONTACT DATA” |
| Mechanical endurance | 1×10⁸ OPS (3000 OPS/min) |
| Insulation resistance | 100MΩ (at 500VDC) |
| Dielectric strength³⁾ | 500VAC |
| Operate time¹⁰⁾ | Max. 10ms (at nominal voltage) |
| Release time¹⁰⁾ | Max. 10ms |
| Ambient temperature | -40°C to 125°C |
| Vibration resistance⁵⁾¹⁰⁾ | 5Hz to 22.3Hz, 10mm DA; 22.3Hz to 500Hz, 98m/s² |
| Shock resistance⁵⁾¹⁰⁾ | 294m/s² |
| Flammability⁶⁾ | UL94-HB or better (meets FMVSS 302) |
| Termination | QC¹¹⁾, PCB⁷⁾ |
| Construction | Plastic sealed, Dust protected |
| Unit weight | Approx. 38g |
| Mechanical data⁸⁾ | Housing retention (pull & push): 200N min. Terminal retention (pull & push): 100N min. Terminal resistance to bending (front & side): 10N min.⁹⁾ |
Notes
- Measured when applying 100% rated voltage on the coil.
- Inrush peak current under lamp load, at 13.5VDC.
- Measured for 1 minute, leakage current less than 1mA.
- The value is measured when voltage drops suddenly from nominal voltage to 0VDC and the coil is not paralleled with a suppression circuit.
- When energized, opening time of NO contacts shall not exceed 100µs.
- FMVSS: Federal Motor Vehicle Safety Standard.
- Since it is an environmentally friendly product, please select lead-free solder when welding. The recommended soldering temperature and time is (250±3)°C, (5±0.3)s.
- Only valid for QC version.
- Test point is 2mm away from the terminal end, and after removing the testing force, the terminal configuration shall not exceed 0.3mm.
- Only for the 12VDC coil voltage type.
- Do NOT knock on relays with hard objects such as a rubber rod or rubber hammer during mounting, which might lead to relay damage.
