• توضیحات:

اسیلوسکوپ های دیجیتال سری SDS1000X HD از سری اسیلوسکوپ های رزولوشن بالای SIGLENT هستند که با بهره گیری از یک مبدل آنالوگ به دیجیتال 12 بیتی و نرخ نمونه برداری 2 گیگا سمپل بر ثانیه توانسته اند کارآیی و عملکرد قدرتمندی از خود ارائه دهند. این اسیلوسکوپ ها در مدل های 100 و 200 مگاهرتزی عرضه می شوند و عمق نمونه برداری آن ها 100Mpts است.

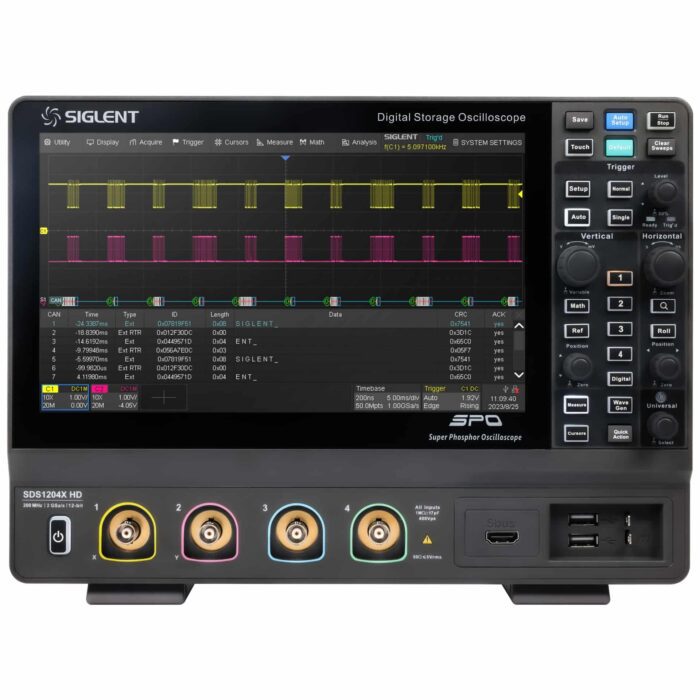

SDS1104X HD مدل 100 مگاهرتزی با 4 کانال ورودی آنالوگ و 16 کانال ورودی دیجیتال می باشد. همچنین SDS1104X HD دارای یک نمایشگر 10.1 اینچی بوده و درگاه های ارتباطی USB و LAN بر روی آن تعبیه شده است.

• ویژگی ها:

• 12-bit High Resolution
  • 12-bit Analog-Digital Convertors with sample rate up to 2 GSa/s
  • Front ends with 70 μVrms noise floor @ 200 MHz bandwidth
• 2/4 analog channels, up to 200 MHz bandwidth
• SPO technology
  • Waveform capture rate up to 120,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
  • Supports 256-level intensity grading and color temperature display modes
  • Up to 100 Mpts record length
  • Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video (HDTV supported) , Qualified, Nth edge, Delay, Setup/Hold time.
• Serial bus triggering and decoder, supports protocols I²C, SPI, UART, CAN, LIN, CAN FD(decode only), FlexRay(decode only)
• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
• History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
• Automatic measurements on 50+ parameters, supports statistics with  histogram, track, trend, Gating measurement, and measurements on Math, History and Ref
• 4 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
• Abundant data analysis functions such as Search, Navigate, Counter, Bode plot and Power Analysis
• High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
• 16 digital channels
• 25 MHz waveform generator(optional)
• Large 10.1” TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures
• Interfaces include: USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
• Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard.
